GDONU300-4GWR Technical Specifications

GDONU300-4GWR is launched to be oriented to multi-service integration network as an optical network unit device by ...

Current position：HOME > PON

GDONU300-4GWR Technical Specifications

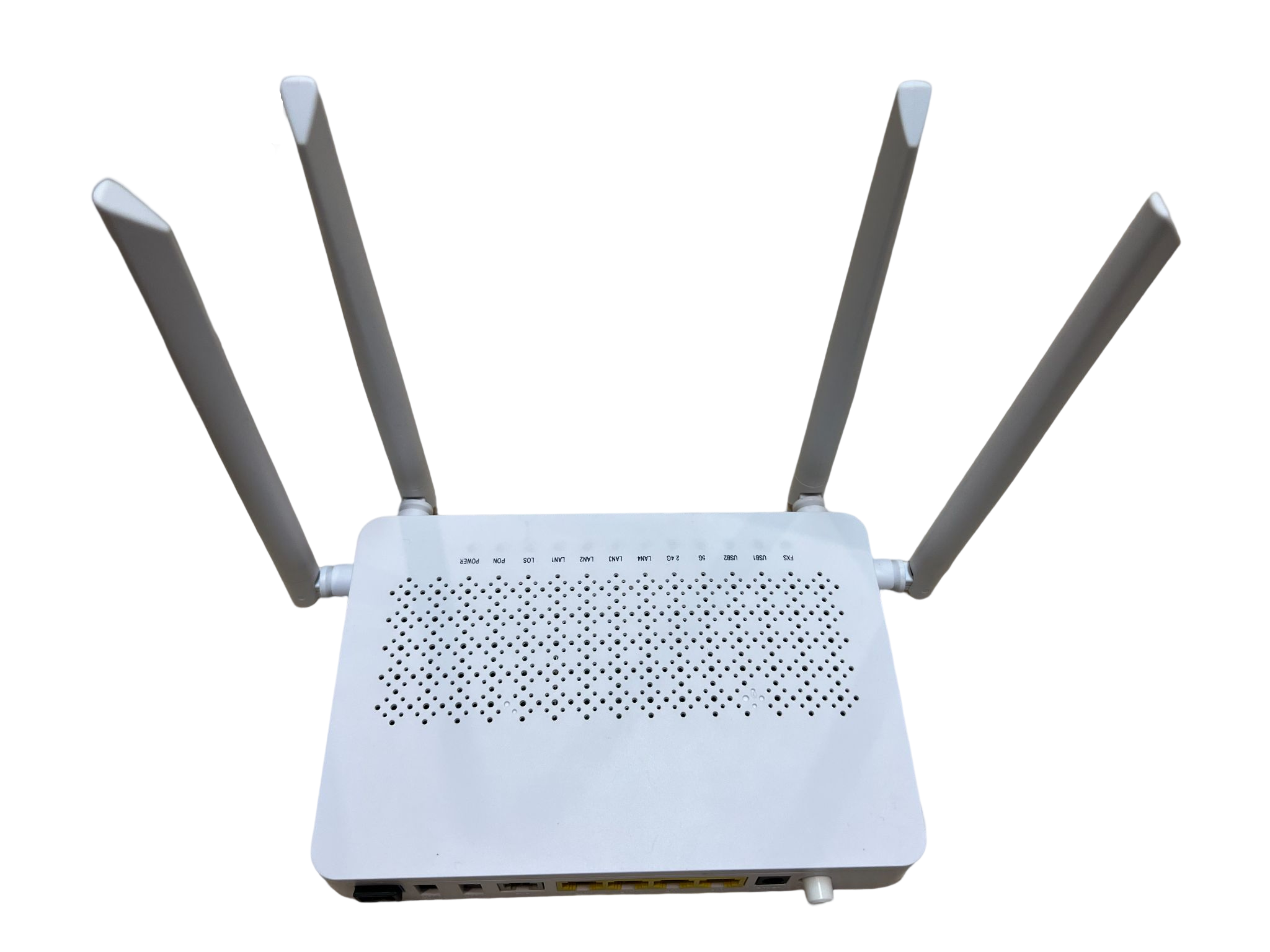

Overview        GDONU300-4GWR is launched to be oriented to multi-service integration network as an optical network unit device by Lootom Telcovideo, which belongs to EPON SFU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports, WiFi (2.4G+5G) port and USB interface that providing with high-speed data services and high-quality video services to users. Features              Intelligent interconnection
              ● WiFi intelligence coverage
              ● SIP/H.248 auto-adapting
              ● Any port any service
              ● Parental control
              ● L2/L3(IPv4) re-transmission: 1G forward，2G backward
             Properties for three layers
              ● PPPoE/static IP/DHCP address access
              ● NAT/NAPT
              ● ALG,UPnP
              ● DDNS/DNS server/DNS client
              ● IPv6/IPv4 dual-stack,DS-Lite
              ● Static route/default route
             Multicast
              ● IGMP v2/v3 snooping
              ● IGMP v2 proxy
              ● IGMP v3 proxy
              ● MLD v1/v2 snooping
             Qos
              ● Ethernet port speed limit
              ● 802.1p priority
              ● SP/WRR/SP+WRR
              ● Broadcast message speed limit
             Security
              ● SPI Firewall
              ● MAC/IP/URL address filtering
             O&M
              ● OMCI/Web UI/TR069
             Power saving
              ● Indicator light energy-efficient
              ● Timing switch Technical Specifications              Hardware?parameters

Dimension

220mm x 150mm x 32mm (Without antenna)

Weight

420g

Working environment temperature

0℃～+40℃

Working environment humidity

5% RH～95% RH, non-condensing

Power adapter input level

90V～270V AC，50/60Hz

Device power supply

11V～14V DC，2 A

Static power consumption

7.5 W

Maximum power consumption

18 W

Interfaces

1POTS+4GE+Wi-Fi(2.4G+5G)+USB

Indicator light

POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV


             Interface parameters








PON interface

? Class B+

? -27dBm receiver sensitivity

? Wavelength：upstream 1310nm，downstream 1490nm

? Support WBF

? Flexible mapping between GEM Port and TCONT

? Authentication method: SN/password/LOID (GPON)

? Two-way FEC (Forward error correction)

? Support DBA for SR and NSR





Ethernet port

? Stripping based on VLAN Tag/Tag for Ethernet port.

? 1:1 VLAN/N:1 VLAN/VLAN Pass-through

? QinQ VLAN

? MAC address limit

? MAC address learning







POTS interface

? Maximum number for one port that joint-up connecting in parallel with Telephone：4 REN

? Support G.711A/u，G.729a/b，G.722 CODEC

? Support T.30/T.38 mode for fax

? DTMF

? Emergency calls protocol







WLAN

? IEEE 802.11 b/g/n

? 2×2 MIMO

? Antenna gain：5dBi

? WMM (Wi-Fi multi media)

? Multiple SSID multiple

? WPS

USB interface

? USB2.0

? Network storage according to FTP
